Model

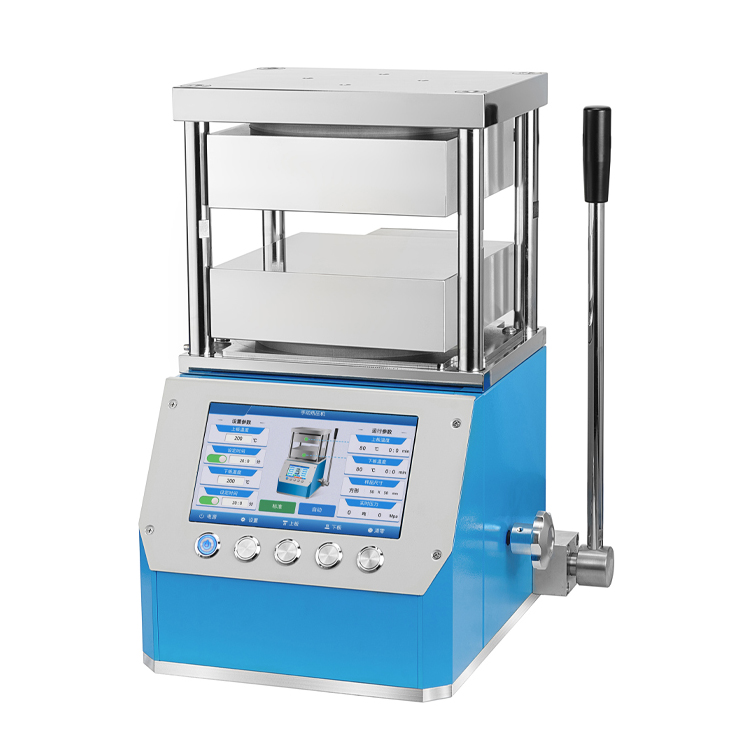

PC-600D1

Heating temperature

RT-300℃

RT-500℃

RT-800℃

Power

1.2 KW

2.4 KW

5 KW

Pressure range

0-10T

Pressure Accuracy

0.01 Ton

Temperature Control accuracy

0.1℃

Piston diameter

Chrome-plated oil cylinder Φ65mm(d)

Integral structure

No sealing connection, oil leakage reduced

Constant Temperature Time

≥1S

Display Screen

7” Touch Screen

Heating method

Multi-stage Heating or Cooling Program

Heating insulation method

Imported Heating insulation board

Cooling method

Air / Water cooling

(water chiller is optional)

Heating area

Double platens heating 180×180mm (M×N)

Working space

185×60mm

Dimension

Machine：320×290×420mm (L×W×H)

Net weight: 95Kg

Packing Size:405×330×550mm (L×W×H)

Gross weight :105 Kg

Water chiller

Dimension : 550×340×430mm

Net weight : 11kg

Voltage

110V / 220V

Diagram of hydraulic press
