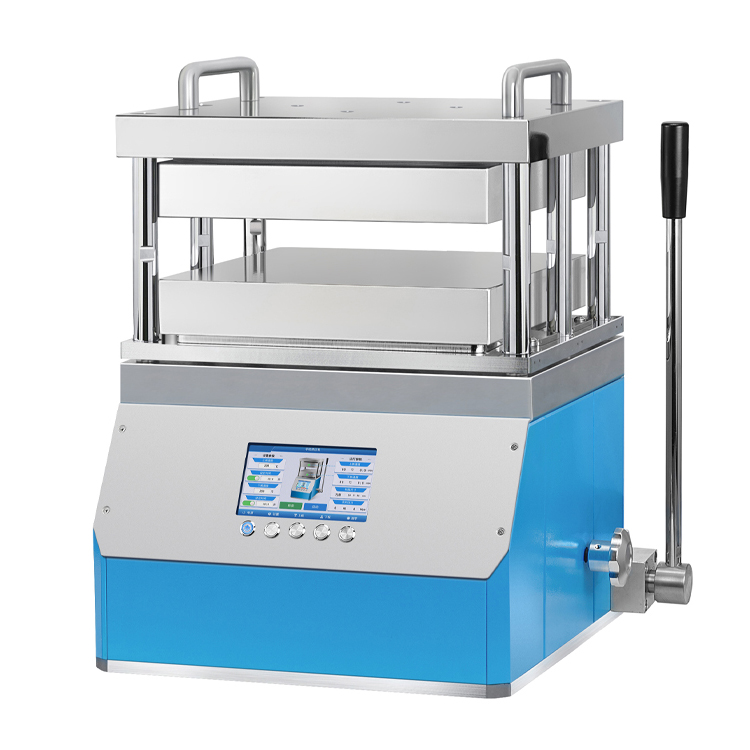

Model

PC-600F

Heating temperature

RT-300℃

RT-500℃

Power

3 KW

5 KW

Pressure range

0-15T

Pressure Accuracy

0.01 Ton

Temperature Control accuracy

0.1℃

Piston diameter

Chrome-plated oil cylinder Φ65mm(d)

Integral structure

No sealing connection, oil leakage reduced

Constant Temperature Time

≥1S

Display Screen

7” Touch Screen

Heating method

Multi-stage Heating or Cooling Program

Heating insulation method

Imported Heating insulation board

Cooling method

Air / Water cooling

(water chiller is optional)

Heating area

Double platens heating 400×400mm (M×N)

Working space

400×70mm

Dimension

Machine：550×520×460mm (L×W×H)

Net weight: 380Kg

Packing Size:725×620×890mm (L×W×H)

Gross weight :416 Kg

Water chiller

Dimension : 550×340×430mm

Net weight : 11kg

Voltage

220V / 380V

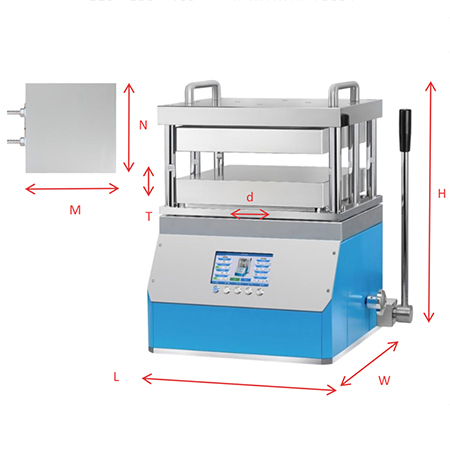

Diagram of hydraulic press
