BASIC INFO
Parameters:
|
Model |
PC-20J |
|
Pressure range |
0-20T (0-21MPa) |
|
Piston diameter |
Φ110mm (d) |
|
Integral structure |
No sealing connection, oil leakage reduced |
|
Pressure gauge |
Pressure and pressure intensity display |
|
Lifting height of cylinder |
40mm (T) |
|
Protective cover |
Plexiglass |
|
Working temperature |
10℃-40℃ |
|
Cavity pressure |
0-300MPa |
|

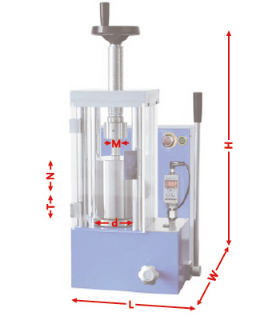

Working space |
Φ30×120mm (M×N) |
|
Dimension |
305×195×600mm (L×W×H) |
|
Weight |
100kg |
|
Diagram of hydraulic press |
 |
