Model

PC-40J

Pressure range

0-40T (0-30MPa)

Piston diameter

Φ130mm (d)

Integral structure

No sealing connection, oil leakage reduced

Pressure gauge

Pressure and pressure intensity display

Lifting height of cylinder

50mm (T)

Protective cover

Plexiglass

Working temperature

10℃-40℃

Cavity pressure

0-300MPa

Working space

Φ40×150mm (M×N)

Dimension

355×215×710mm (L×W×H)

Weight

130kg

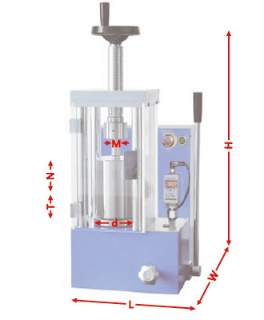

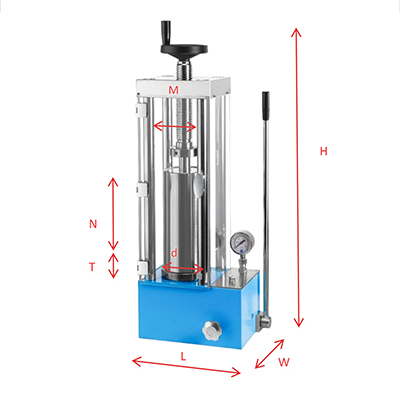

Diagram of hydraulic press
