Model

PP-600D1-F

Heating temperature

RT-300℃

RT-500℃

RT-800℃

Power

2.2 KW

3.4 KW

6 KW

Pressure range

0.01-25T

Pressure Accuracy

0.01 Ton

Metal button

Silver-plated contacted , with a service life of over 100,000 times.

Safety protection cover

Acrylic protective door (automatic power-off when opened) + emergency stop button, dual protection for safer operation.

Curved graph pattern

It can display the operation curve graph for each time and supports downloading Excel files via USB drive.

Pressure control

Up to 18 program controls, including pressure, temperature, and water cooling, can all be controlled idependently.

Water cooling

Support manual activation of the water cooling method for cooling, and automatic rapid cooling can be also achived in multiple program segments.

(water chiller is optional)

Speed Regulation

The boosting speed can be adjusted, and the heating speed cab be regulated.

Romote control

A cumputer needs to be selected and equiped, it can perform functoins such as data analysis, comparison, modification and export.

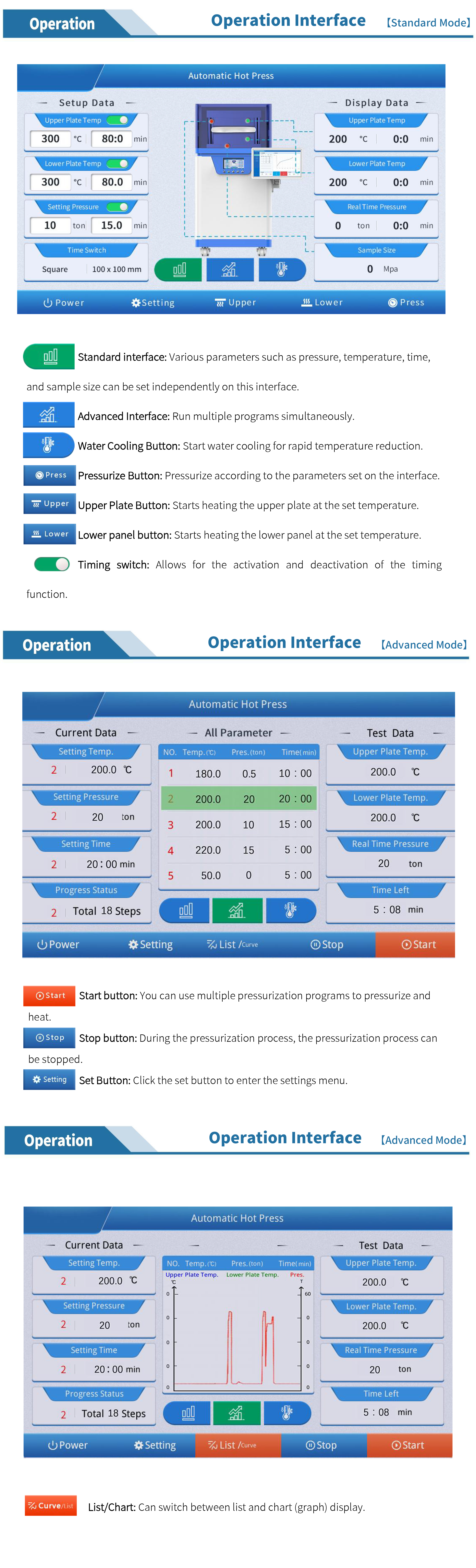

Display Screen

7” Touch Screen

Heating method

Multi-stage Heating or Cooling Program

Heating insulation method

Imported Heating insulation board

Cooling method

Air / Water cooling

(water chiller is optional)

Heating area

Double platens heating 200×200mm (M×N)

Working space

210×65mm

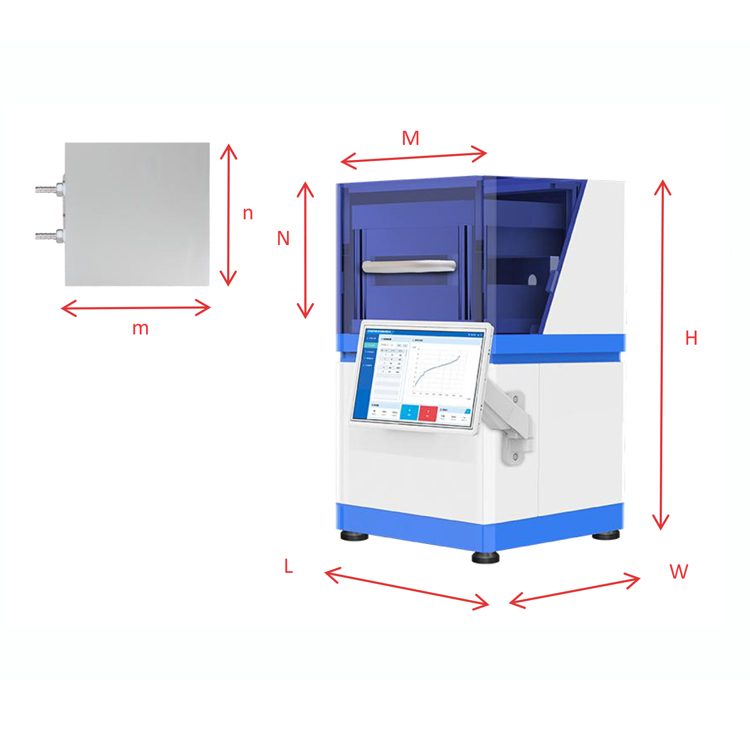

Dimension

Machine：480×480×750mm (L×W×H)

Net weight: 200Kg

Packing Size:725×620×890mm (L×W×H)

Gross weight :236Kg

Water chiller

Dimension : 550×340×430mm

Net weight : 11kg

Voltage

110V / 220V

Diagram of hydraulic press
