Model

PP-600F

Heating temperature

RT-300℃

RT-500℃

Power

4 KW

6 KW

Pressure range

0-50T

Pressure Accuracy

0.1 Ton

Temperature Control accuracy

0.1℃

Pressurization process

20 stage programmed pressurization with pressure profile display

Pressure holding time

Each stage can last up to 32768 seconds , or work indefinitely without timing.

Constant Temperature Time

≥1S

Display Screen

7” Touch Screen

Heating method

Multi-stage Heating or Cooling Program

Heating insulation method

Imported Heating insulation board

Cooling method

Air / Water cooling

(water chiller is optional)

Heating area

Double platens heating 400×400mm (M×N)

Working space

400×80mm

Dimension

Machine：520×580×740mm (L×W×H)

Net weight: 550Kg

Packing Size:725×620×890mm (L×W×H)

Gross weight :586Kg

Water chiller

Dimension : 550×340×430mm

Net weight : 11kg

Voltage

220V / 380V

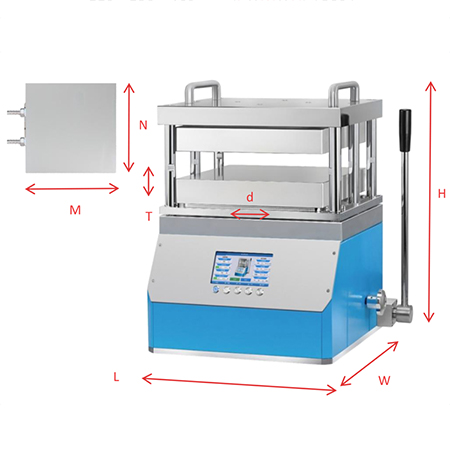

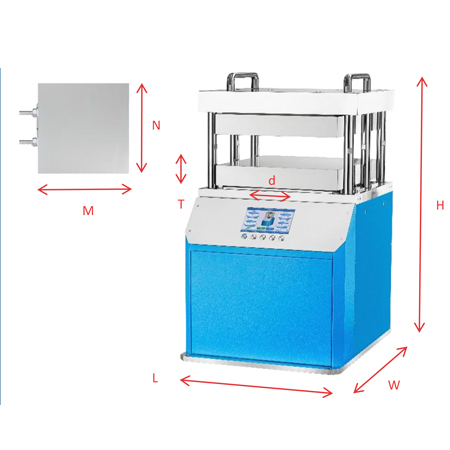

Diagram of hydraulic press
