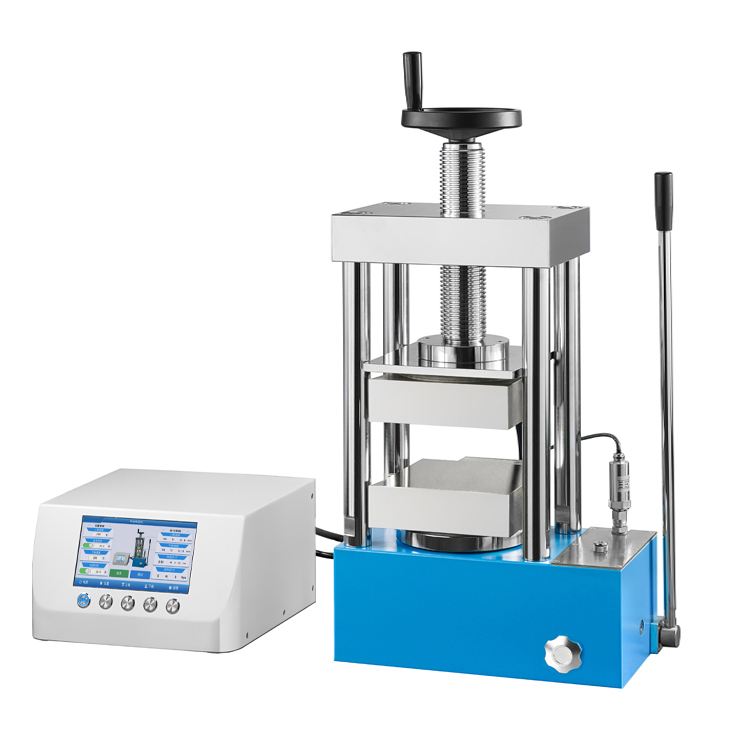

Model

PCH-600C2

Heating temperature

RT-300℃

RT-500℃

RT-800℃

Power

0.6 KW

1 KW

3.5 KW

Pressure range

0-40T

Pressure Accuracy

0.01 Ton

Temperature Control accuracy

0.1℃

Piston diameter

Chrome-plated oil cylinder Φ130mm(d)

Integral structure

No sealing connection, oil leakage reduced

Constant Temperature Time

≥1S

Display Screen

7” Touch Screen

Heating method

Multi-stage Heating or Cooling Program

Heating insulation method

Imported Heating insulation board

Cooling method

Air / Water cooling

(water chiller is optional)

Heating area

Double platens heating120×120mm (M×N)

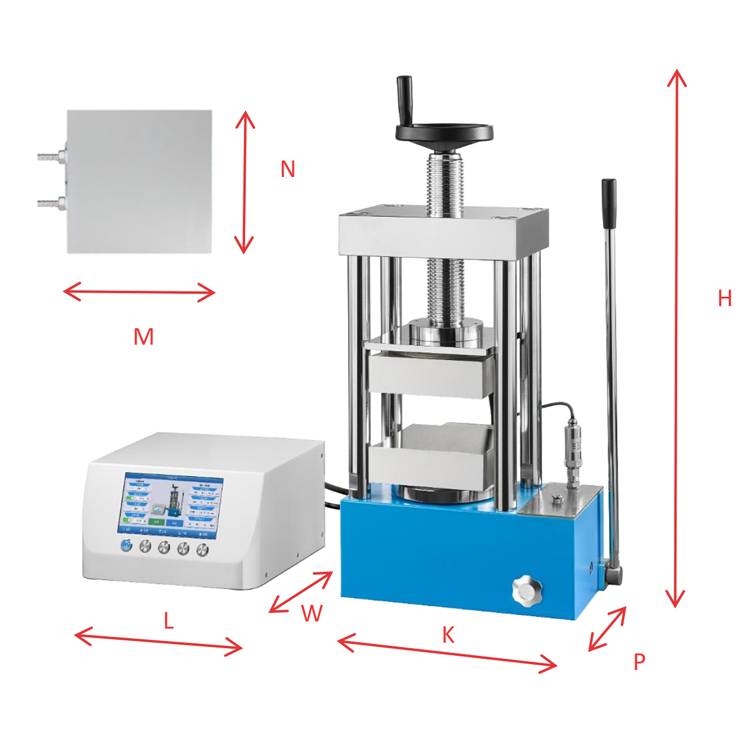

Working space

136×130mm

Controlling part

Dimension: 490×395×235mm (L×W×H)

Net weight: 9.5Kg

Gross weight :26.5 Kg

Pressing part dimension

600×300×550mm (K×P×H)

Net weight :60Kg

Gross weight: 96Kg

Water chiller

Dimension : 550×340×430mm

Net weight : 11kg

Voltage

110V / 220V

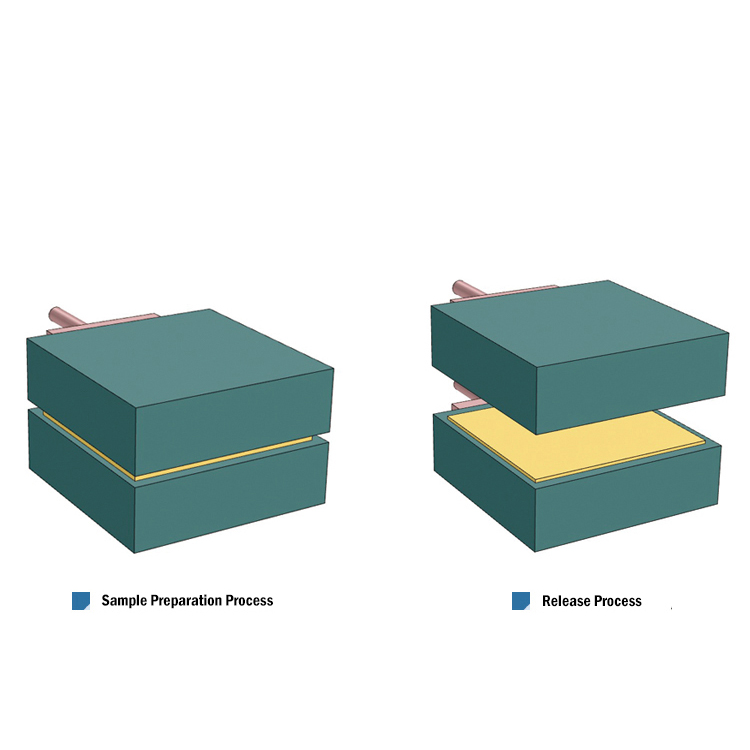

Diagram of hydraulic press
