Model

PCD-12J

Pressure range

0-12T (0-17MPa)

Piston diameter

Φ95mm (d)

Integral structure

No sealing connection, oil leakage reduced

Pressure gauge

Pressure and pressure intensity display

Lifting height of cylinder

40mm (T)

Pressurization mode

Electric / Manual

Compensation mode

Auto / Manual

Protective cover

Plexiglass

Working temperature

10℃-40℃

Cavity pressure

0-300MPa

Working space

Φ22×70mm (M×N)

Voltage

220V, 50/60Hz

Dimension

405×240×720mm (L×W×H)

Weight

110kg

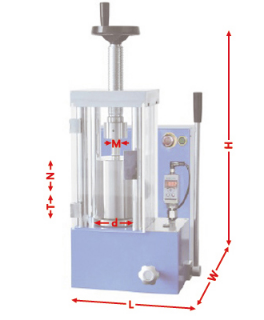

Diagram of hydraulic press
